t_mole_local Class Reference

#include <mole.h>

Inheritance diagram for t_mole_local:
Inheritance graph
[legend]
Collaboration diagram for t_mole_local:
Collaboration graph
[legend]

Public Member Functions

void alloc ()

void zero ()

void comment (t_warnings &)

const char * chName () const

void set_ion_locations ()

void set_isotope_abundances (void)

double sink_rate_tot (const char chSpecies[]) const

double sink_rate_tot (const molecule *const sp) const

double sink_rate (const molecule *const sp, const mole_reaction &rate) const

double sink_rate (const molecule *const sp, const char buf[]) const

double source_rate_tot (const char chSpecies[]) const

double source_rate_tot (const molecule *const sp) const

double dissoc_rate (const char chSpecies[]) const

double chem_heat (void) const

double findrk (const char buf[]) const

double findrate (const char buf[]) const

- Public Member Functions inherited from module
 module ()

virtual ~module ()


Public Attributes

double grain_area

double grain_density

double grain_saturation

double elec

multi_arr< double, 2 > source

multi_arr< double, 2 > sink

multi_arr< realnum, 3 > xMoleChTrRate

valarray< class molezone > species

vector< double > reaction_rks

vector< double > old_reaction_rks

long old_zone


Member Function Documentation

void t_mole_local::alloc ( )

References multi_arr< T, d, ALLOC, lgBC >::alloc(), multi_arr< T, d, ALLOC, lgBC >::clone(), LIMELM, multi_arr< T, d, ALLOC, lgBC >::reserve(), sink, source, and xMoleChTrRate.

Referenced by zero().

Here is the call graph for this function:

double t_mole_local::chem_heat ( void  ) const
Todo:
Once the H chem is merged with the C chem, then we will have the chemical heating rate for all reactions. This is only a subset and, thusfar, not actually used in getting the total heating. Tests with pdr_leiden_hack_f1.in show that this heating rate can be up to 10% of the total heating

References DEBUG_ENTRY, findspecies(), molecule::form_enthalpy, fprintf(), mole_reaction::index, molecule::index, ioQQQ, mole_reaction::label, mole_reaction::nproducts, mole_reaction::nreactants, NULL, nzone, mole_reaction::products, mole_priv::reactab, mole_reaction::reactants, reaction_rks, and mole_reaction::rvector.

Referenced by CoolEvaluate().

Here is the call graph for this function:

const char* t_mole_local::chName ( ) const
inlinevirtual

Implements module.

void t_mole_local::comment ( t_warnings &  )
inlinevirtual

Implements module.

double t_mole_local::dissoc_rate ( const char  chSpecies[]) const

returns the photodissociation rate per unit volume [cm^-3 s^-1] producing monatomic species chSpecies. Excludes photoionizations of other monatomic species, e.g. N-,PHOTON=>N,e-

returns the photodissociation rate per unit volume [cm^-3 s^-1] of species chSpecies

References ASSERT, DEBUG_ENTRY, findspecies(), mole_reaction::index, molecule::index, molecule::isMonatomic(), molecule::nNuclide, mole_reaction::nproducts, mole_reaction::nreactants, null_mole, mole_reaction::products, mole_priv::reactab, mole_reaction::reactants, and reaction_rks.

Referenced by lines().

Here is the call graph for this function:

double t_mole_local::findrate ( const char  buf[]) const

References DEBUG_ENTRY, mole_reaction::index, molecule::index, mole_findrate_s(), mole_reaction::nreactants, mole_reaction::reactants, and reaction_rks.

Referenced by lines_molecules(), mole_effects(), and mole_h_rate_diagnostics().

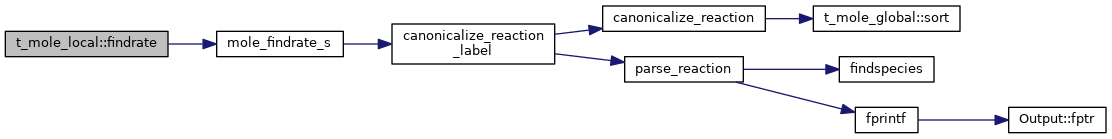

Here is the call graph for this function:

double t_mole_local::findrk ( const char  buf[]) const

References ASSERT, DEBUG_ENTRY, mole_reaction::index, isnan, mole_findrate_s(), and reaction_rks.

Referenced by diatomics::mole_H2_form(), and SaveDo().

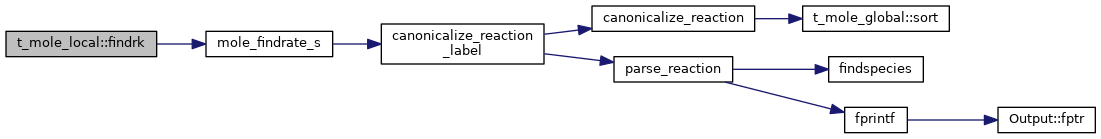

Here is the call graph for this function:

void t_mole_local::set_ion_locations ( )

References ASSERT, DEBUG_ENTRY, dense, deut, findspecieslocal(), t_dense::ionMole, t_deuterium::lgElmtOn, molezone::location, mole_global, nuclide_list, t_mole_global::num_total, t_deuterium::xIonDense, and t_dense::xIonDense.

Referenced by InitSimPostparse().

Here is the call graph for this function:

void t_mole_local::set_isotope_abundances ( void  )

References DEBUG_ENTRY, nuclide_list, and NULL.

Referenced by mole_update_species_cache(), and GroupMap::updateMolecules().

double t_mole_local::sink_rate ( const molecule *const  sp,
const mole_reaction &  rate
) const

References mole_reaction::a, DEBUG_ENTRY, molecule::index, mole_reaction::nreactants, NULL, mole_reaction::reactants, mole_reaction::rk(), mole_reaction::rvector, and mole_reaction::rvector_excit.

Referenced by sink_rate(), and sink_rate_tot().

Here is the call graph for this function:

double t_mole_local::sink_rate ( const molecule *const  sp,
const char  buf[]
) const

References mole_findrate_s(), and sink_rate().

Here is the call graph for this function:

double t_mole_local::sink_rate_tot ( const char  chSpecies[]) const

References DEBUG_ENTRY, and findspecies().

Referenced by diatomics::H2_X_sink_and_source(), and mole_effects().

Here is the call graph for this function:

double t_mole_local::sink_rate_tot ( const molecule *const  sp) const

References DEBUG_ENTRY, mole_priv::reactab, and sink_rate().

Here is the call graph for this function:

double t_mole_local::source_rate_tot ( const char  chSpecies[]) const

References DEBUG_ENTRY, and findspecies().

Referenced by diatomics::H2_X_sink_and_source(), and mole_h_rate_diagnostics().

Here is the call graph for this function:

double t_mole_local::source_rate_tot ( const molecule *const  sp) const

References mole_reaction::a, DEBUG_ENTRY, molecule::index, mole_reaction::nproducts, mole_reaction::nreactants, NULL, mole_reaction::products, mole_reaction::pvector, mole_reaction::pvector_excit, mole_priv::reactab, mole_reaction::reactants, and mole_reaction::rk().

Here is the call graph for this function:

void t_mole_local::zero ( void  )
virtual

Implements module.

References t_mole_global::num_calc, old_reaction_rks, reaction_rks, sink, source, and xMoleChTrRate.

Member Data Documentation

double t_mole_local::elec

total charge in molecules

Referenced by ConvBase(), eden_sum(), t_mole_global::init(), and mole_return_cached_species().

double t_mole_local::grain_area

Referenced by InitSimPostparse(), and mole_update_species_cache().

double t_mole_local::grain_density

Referenced by mole_update_species_cache().

double t_mole_local::grain_saturation

Referenced by mole_update_species_cache().

vector<double> t_mole_local::old_reaction_rks

Referenced by mole_rk_bigchange(), and zero().

long t_mole_local::old_zone

Referenced by mole_create_react(), and mole_rk_bigchange().

vector<double> t_mole_local::reaction_rks

Referenced by chem_heat(), dissoc_rate(), findrate(), findrk(), mole_create_react(), mole_dominant_rates(), mole_eval_balance(), mole_eval_sources(), mole_print_species_reactions(), mole_rk_bigchange(), mole_save(), mole_update_rks(), and zero().

multi_arr<double,2> t_mole_local::sink

Referenced by alloc(), fill_ext_src_and_snk(), find_solution(), HomogeneousSource(), iso_level(), IterRestart(), IterStart(), mole_eval_sources(), mole_h_rate_diagnostics(), mole_solve(), PrintRates(), and zero().

multi_arr<double,2> t_mole_local::source

these are source and sink terms for the ionization ladder, for chemical processes that remove and add species

Referenced by alloc(), fill_ext_src_and_snk(), find_solution(), iso_level(), IterRestart(), IterStart(), mole_eval_sources(), mole_h_rate_diagnostics(), mole_solve(), PrintRates(), and zero().

valarray<class molezone> t_mole_local::species

Referenced by AbundChange(), t_gaunt::brems_sum_ions(), ChemImportance(), ConvBase(), ConvIterCheck(), DynaStartZone(), eden_sum(), ElectronFractions(), findspecieslocal(), findspecieslocal_validate(), funjac(), diatomics::H2_LevelPops(), diatomics::H2_PunchDo(), diatomics::init(), t_mole_global::init(), iso_allocate(), isSpeciesActive(), iter_end_check(), IterRestart(), IterStart(), lgNetEdenSrcSmall(), lgNucleiConserved(), molecule::local(), matchGeneric(), molcol(), mole_dominant_rates(), mole_effects(), mole_eval_balance(), mole_eval_dynamic_balance(), mole_eval_sources(), mole_h_fixup(), mole_h_rate_diagnostics(), mole_print_species_reactions(), mole_return_cached_species(), mole_save(), mole_solve(), mole_update_limiting_reactants(), mole_update_species_cache(), PrtComment(), PrtZone(), radius_increment(), radius_next(), RT_tau_reset(), SaveDo(), SaveSpecies(), ScaleAllDensities(), GroupMap::setup(), species_gasphase_density(), states_nelemfill(), total_molecule_deut(), total_molecule_elems(), total_molecules(), total_molecules_gasphase(), and GroupMap::updateMolecules().

multi_arr<realnum,3> t_mole_local::xMoleChTrRate

Referenced by alloc(), fill_array(), iso_level(), IterRestart(), IterStart(), mole_eval_sources(), PrintRates(), and zero().

The documentation for this class was generated from the following files:
